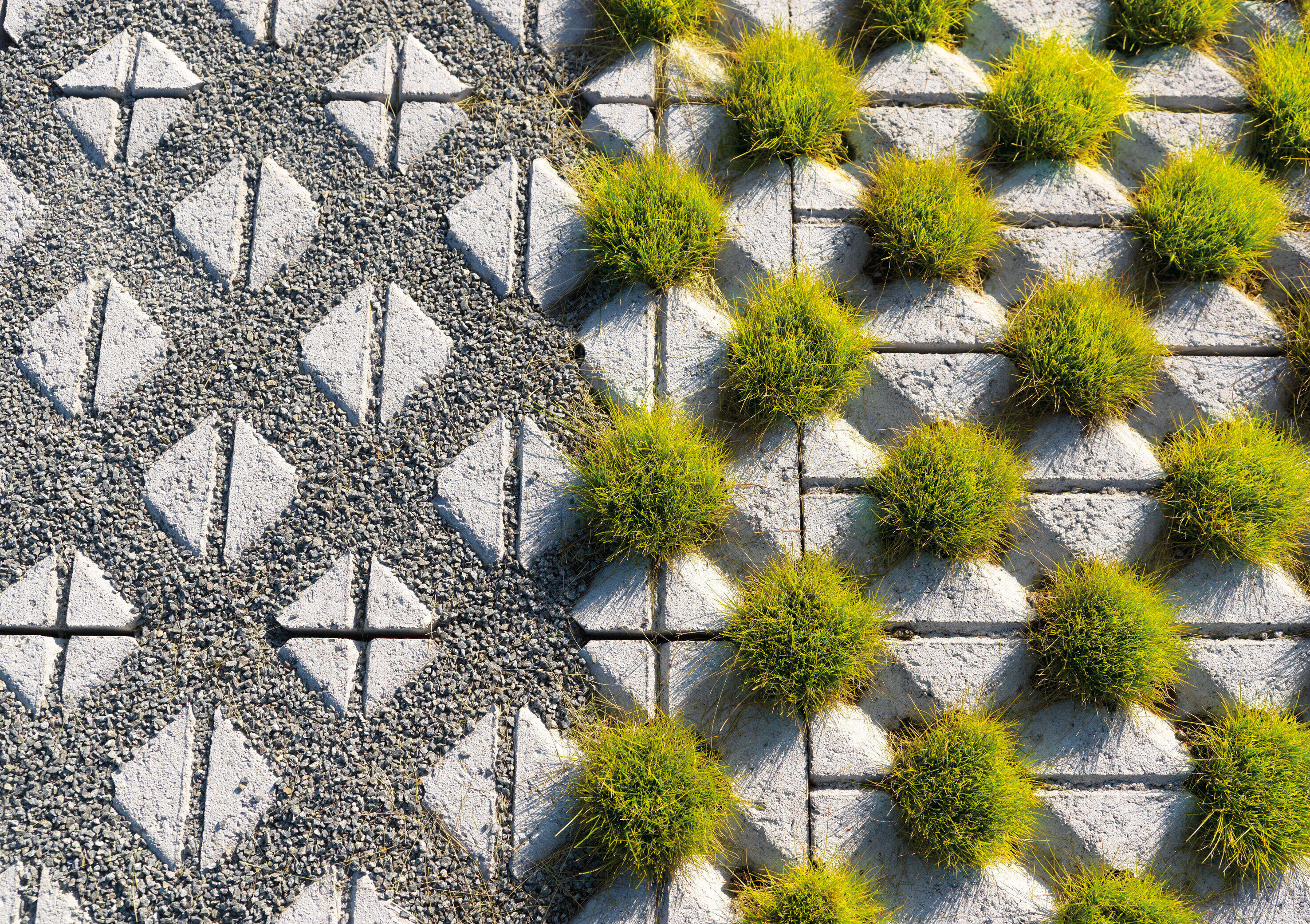

Where paving and nature must support each other, the grass concrete tile offers an excellent solution. The grass concrete tile protects the surface against erosion without destroying the natural appearance. The grass can grow through the openings in the tile.
Grass concrete tiles are available in 2 types and different sizes.
Grass concrete tile flat
- 60x40x10 cm flat
- 60x40x12 cm flat with 3 mm spacer
- 60x40x15 cm flat with 3 mm spacer
Grass concrete tile with grooves
- 60x40x9 cm with grooves
- 60x40x12 cm with grooves and 3 mm spacer
- 60x40x15 cm with grooves and 3 mm spacer
The format offers great stability, with unlimited application possibilities such as:
- Emergency and hard shoulder lanes
- Parking lots
- Firebreaks
- Slope and bank revetment
Grass tiles can be laid directly in various patterns using the clamp of the truck. Grass tiles are supplied under the BENOR quality mark.
Frequently Asked Questions
How heavy may vehicles be on grass concrete tiles?
With a 60×40×15 cm tile on a sub-base constructed in accordance with CROW Guideline 400, an axle load of up to approx. 20 tonnes is achievable. Always select the correct tile thickness in combination with a well-compacted sub-base.
Do the tiles allow rainwater to pass through?
Yes. The open cells and spacers provide over 90% water infiltration, meeting BENG and municipal infiltration requirements.
Can the tiles be laid mechanically?
Yes. All formats are suitable for clamp laying (truck-mounted clamp), enabling fast and ergonomic installation.
